PS-1100 Ultrasonic Leak Detector

Product Code:  99-0000-0031

Short Description

Ultrasonic Inspection System

The world's first digital dual leak detector for external and internal leaks.

Valued approximately one half of the cost of a 1/8” hole at 90 PSI leaking compressed air for 7000 hours.

ROI 186%.


Best for: Industrial HVAC-R, Institutional Maintenance, Compressed Air Leak Detection, Steam Trap Maintenance, Arcing & Corona

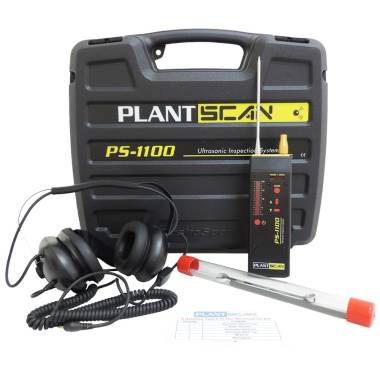

The PS-1100 Ultrasonic leak detector kit includes:

  • Base Unit
  • 6" Touch Probe
  • 6" Wave Guide
  • Noise Attenuating Headset (behind the head)
  • Large Carrying Case

Base Unit ultrasonic leak detector technical details:

  • Multi-patented Digital Ultrasonic Inspection System.
  • Contains integrated dual sensors for airborne leaks and structure borne sounds from internal leaks.
  • Dual displays. 20 element bar graph with peak-hold and separate Alphanumeric Digital display for instrument settings and output levels.
  • Independent sensitivity and volume controls allowing AudioZoom™. "On-the-fly" change of sensitivity.
  • User can toggle from Airborne to Structure Borne sensors in four button clicks without having to reset any previous selections.
  • Airborne input frequency range 36kHz to 42kHz audio output 0Hz to 4kHz, structure borne frequency range 16kHz to 24kHz.
  • Capable of detecting a 5 psi leak out of a .005" (five thousands of an inch (5/1000)) hole, 30 to 40 feet away depending on background noise.
  • Capable of detecting any gas that generates ultrasonic sound during flow including vacuum leaks.
